Manage GPU usage

INFO

Only Olares admin can configure GPU usage mode. This ensures optimal resource management across the system and prevents conflicts between users' resource needs.

Olares allows you to harness the full power of your GPUs to accelerate demanding tasks such as large language models, image and video generation, and gaming. Whether your GPUs are on a single node or spread across multiple nodes, you can manage them conveniently from one centralized interface.

This guide helps you understand and configure GPU allocation modes to maximize hardware performance.

GPU support

Olares supports only Nvidia GPUs of Turing architecture or later (Turing, Ampere, Ada Lovelace, and Blackwell).

• Quick check: GTX/RTX 16 series and newer consumer cards are supported.
• For other models, cross-check with the compatible GPU table.
• Other models: Cross-check with the compatible GPU table.
• Unknown model: Run lspci | grep -i nvidia to query the GPU architecture code and determine compatibility.

AI Performance

Even if your GPU architecture is supported, low VRAM capacity may cause AI applications to fail. Ensure your GPU has enough memory for your workloads.

Understand GPU allocation modes

Olares supports three GPU allocation modes. Choosing the right mode helps optimize performance based on your needs.

Time Slicing

In this mode, a GPU can be bound to multiple applications and rotates execution in time slices.

• At any instant, only one application uses all available compute and VRAM of the GPU.
• Other apps enter a wait queue; Their VRAM contents (e.g., CUDA context, etc.) may be temporarily swapped out to system memory.

Default GPU allocation

By default, GPUs run in time-slicing mode. Applications without allocated GPU resources automatically join the time-sliced GPU queue. If no time-sliced GPU is available, the application pauses after a startup timeout. In this case, you need to allocate a GPU (for example, set a GPU to time-slicing mode, or assign a VRAM quota to the application), then manually resume the application.

App Exclusive

In this mode, the entire GPU is allocated to a single application.

• During execution, the app can use all compute and VRAM of the bound GPU.
• No cross-app contention or scheduling overhead so that best performance is guaranteed.

Memory Slicing

In this mode, VRAM of the GPU is partitioned into fixed quotas for multiple designated applications.

• Users need to manually set a quota for each app.
• The sum of quotas must not exceed physical VRAM of the bound GPU. Oversubscription is not supported.
• Apps with quota assigned can run concurrently, each limited to its own quota.

Multi-GPU allocation

• All three allcation modes support assigning multiple GPUs to the same application. Olares only assigns multiple GPUs to the application’s container without fusing VRAM or compute in any way. Whether multi-GPU is utilized depends on the application/framework itself.

• In multi-node environments, you can't assign multiple GPUs across nodes to the same application simultaneously.

View GPU status

To view your GPU status:

1. Navigate to Settings > GPU. The GPU list shows each GPU’s model, associated node, total VRAM, and current GPU mode.
2. Click on a specific GPU to visit its details.

Note

If your Olares only has one GPU, navigating to the GPU section will take you directly to the GPU details page.

Configure GPU mode

On the GPU details page, select your desired mode from the GPU mode dropdown. Depending on your selected mode, different follow-up options apply.

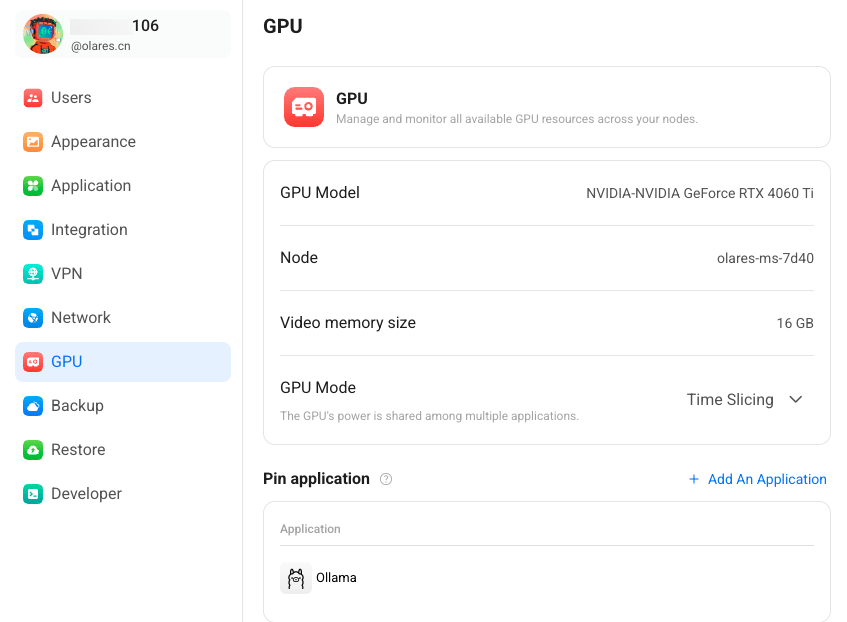

• Time Slicing：

  1. Select this mode from the GPU mode dropdown.
  2. In the Pin application section, click +Add an application to manually pin an application to this specific GPU in a multi-GPU setup.



  Note

  No manual binding is required if you only have one GPU in your cluster.

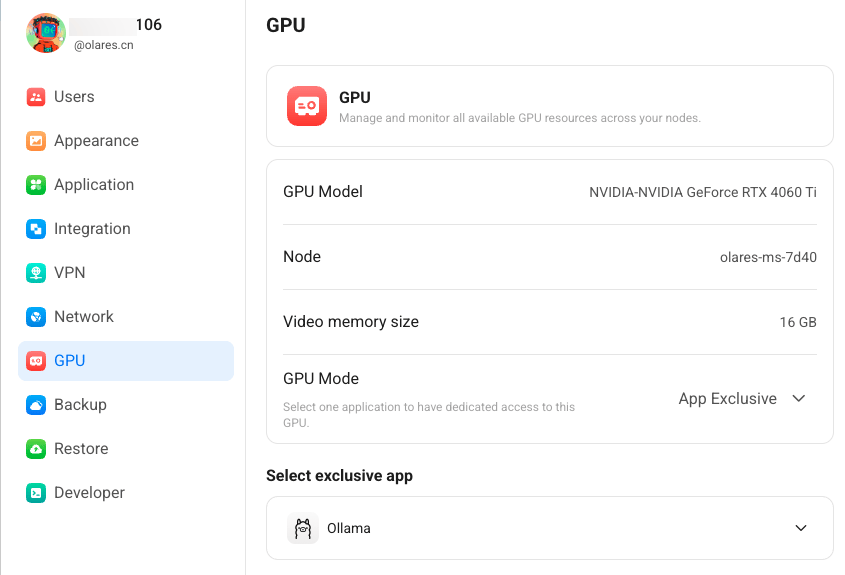

• App Exclusive

  1. Select this mode from the GPU mode dropdown.
  2. In the Select exclusive app dropbox, choose your target application.
  3. Click Confirm.

• Memory Slicing

  1. Select this mode from the dropdown.
  2. In the Allocate VRAM section, click Add an application.
  3. Select your target application and assign it a specific amount of VRAM in GB.
  4. Repeat for other applications and click Confirm.

Unbinding

• After binding an GPU or its VRAM to an application, you can manually unbind it under the corresponding GPU mode to release GPU resources.

• When you switch a GPU’s allocation mode, all applications allocated under that mode are unbound, and the application containers will restart.

Learn more

• Monitor GPU usage in Olares
