Access Olares anywhere via LarePass VPN

By enabling Virtual Private Network (VPN) in LarePass, all traffic from the device to Olares is routed through a secure private network, providing the same experience as local access.

This document walks you through how to set up LarePass VPN to access Olares anywhere.

Enable VPN on LarePass

TIP

For different LarePass download options, visit the official page.

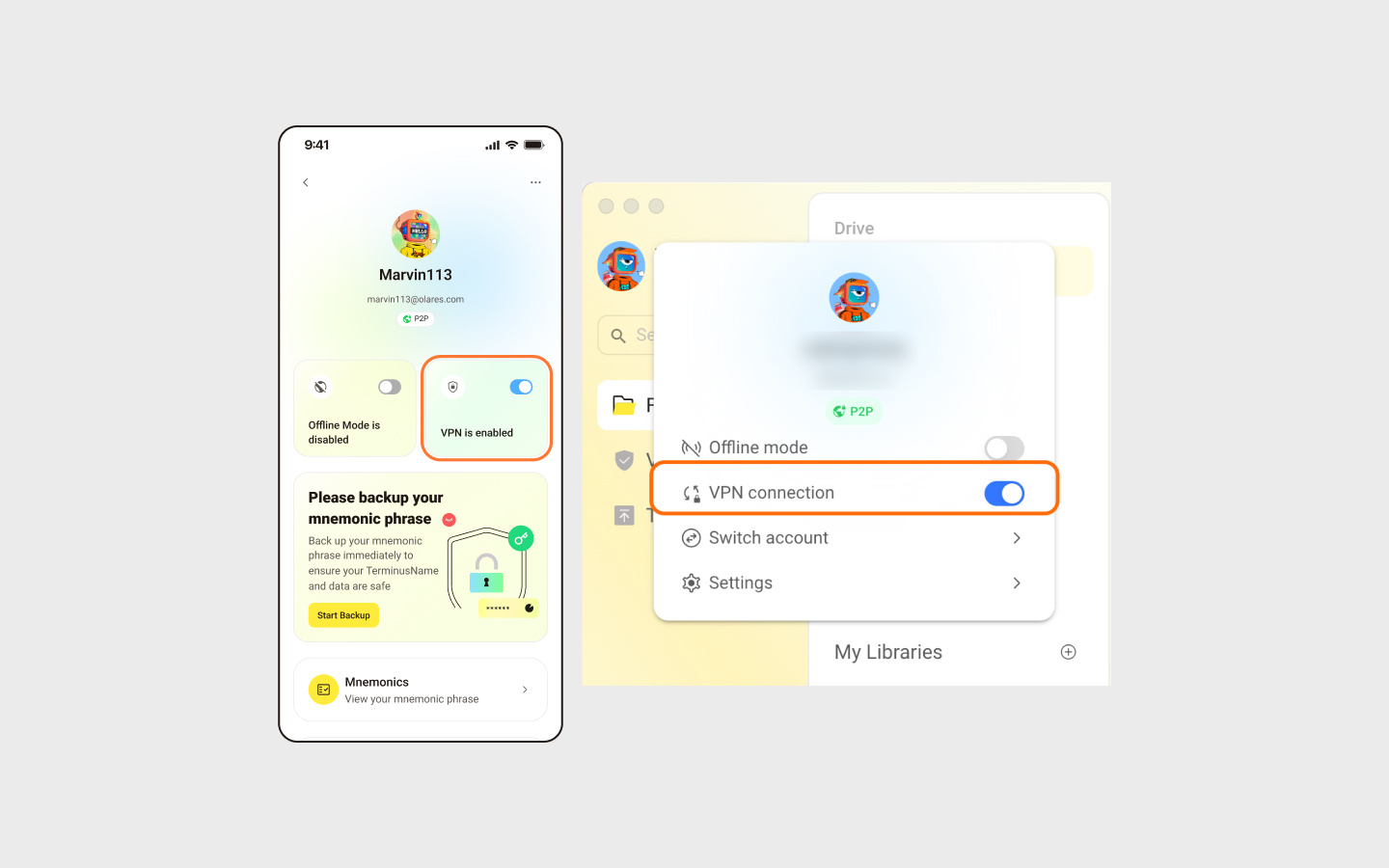

On LarePass mobile client

1. Open LarePass, go to Settings > Account.
2. Turn on the VPN switch.

On LarePass desktop client

1. Open LarePass, click on the avatar area in the top left corner of the main interface.
2. Turn on the switch for VPN connection in the pop-up panel.

Devices with activated VPN will use the VPN connection to access Olares, whether through the LarePass client or a browser.

INFO

iOS or macOS versions of LarePass will require adding a VPN configuration file to the system when turning on the VPN. Follow the prompts to complete the setup.

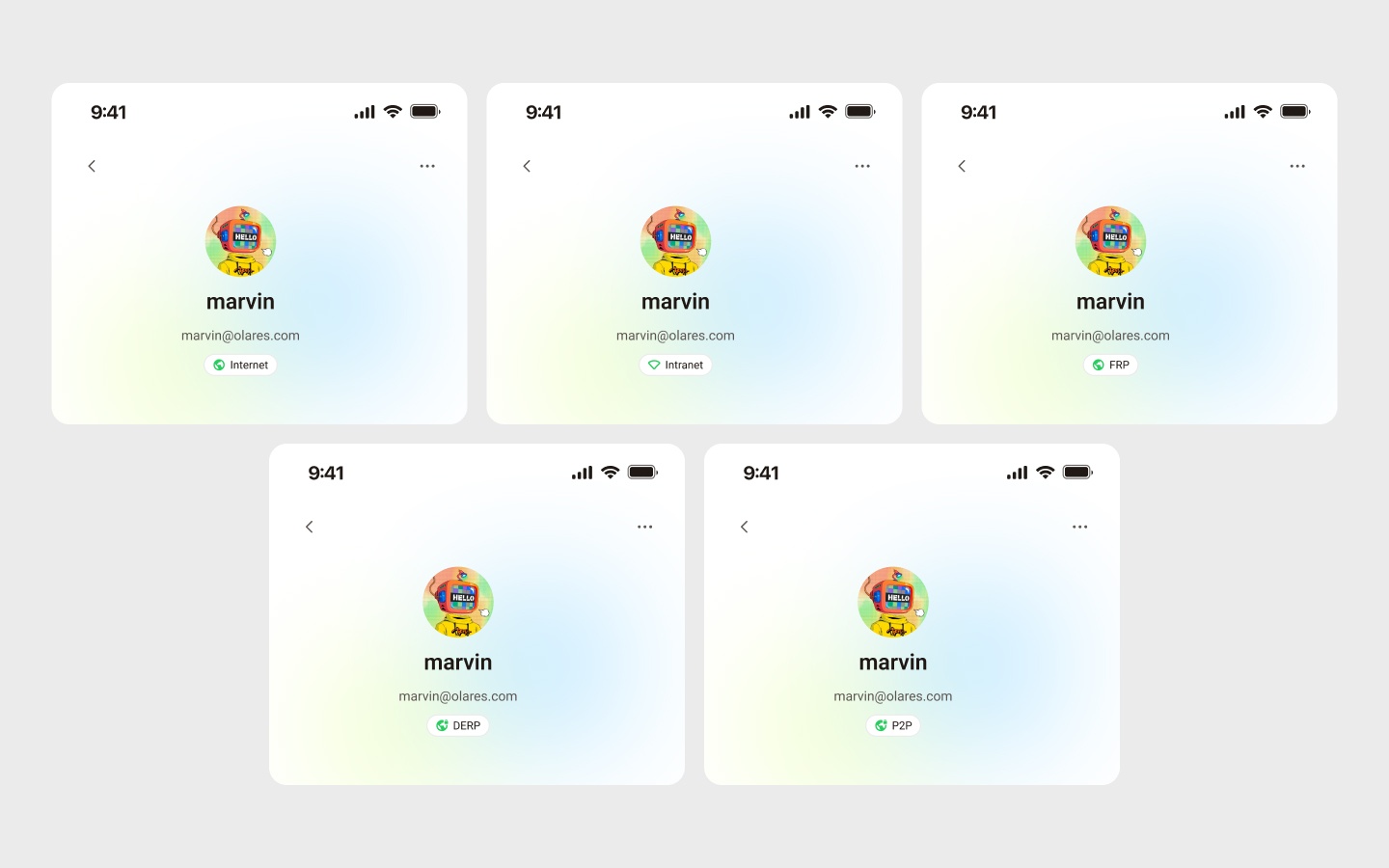

Understand connection status

LarePass displays the connection status between your device and Olares, helping you understand or diagnose your current network connection.

Status	Description
Internet	Connected to Olares via the public internet
Intranet	Connected to Olares via the local network
FRP	Connected to Olares via FRP
DERP	Connected to Olares via VPN using DERP relay
P2P	Connected to Olares via VPN using P2P connection
Offline mode	Currently offline, unable to connect to Olares

INFO

When accessing private entrances from an external environment through VPN, if the status shows "DERP", it indicates that the VPN cannot directly connect to Olares via P2P and must use Tailscale's relay servers. This status may affect connection quality. If you constantly encounter this situation, please contact Olares support for assistance.

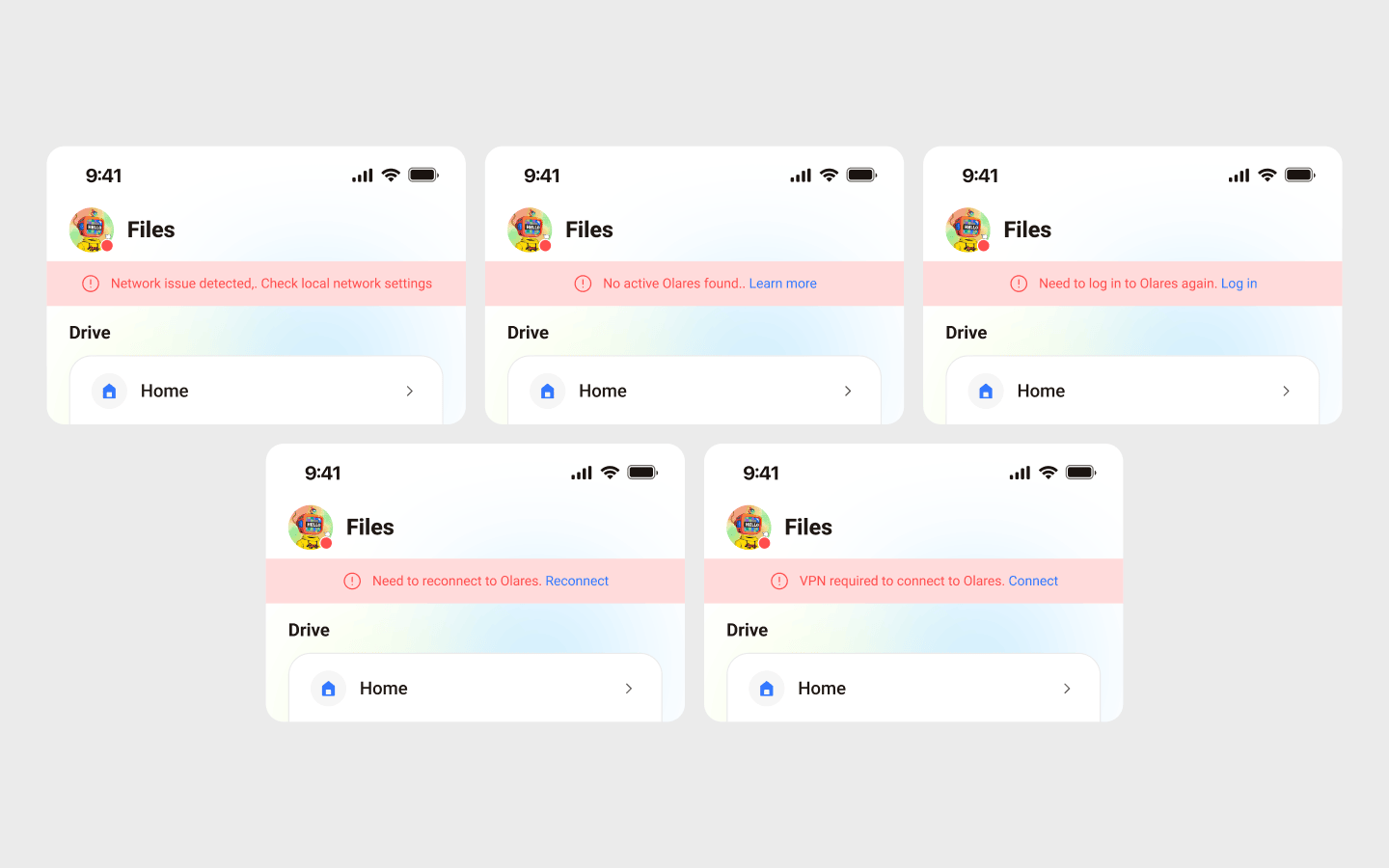

Troubleshoot connection issues

If you encounter connection problems, LarePass will display diagnostic messages to help you resolve the issue. Here are some common scenarios and how to address them:

Status message	Possible cause and recommended actions
Network issue detected. Please check local network settings.	Local network issue 1. Wait for automatic reconnection. The system will detect network recovery and sync data. 2. Check your local network settings if the issue persists.
VPN connection to Olares required.	VPN not enabled Click the notification banner and follow prompts to enable VPN connection.
Olares re-login required.	Session expired or authentication issue Click the notification banner and follow prompts to log in.
Olares reconnection required.	Connection interrupted or timed out Click the notification banner and follow prompts to log in. After re-login, Vault data will sync and merge with the server.
No running Olares detected.	Temporary network issue or Olares is restarting or shutting down Wait for automatic recovery. This usually resolves shortly. Olares instance no longer exists 1. Click the notification banner and follow prompts to reactivate Olares, enable offline mode or ignore notification. 2. Contact Olares Admin if the issue persists.
